Diverter Valve

Válvula em V_Imagem Tratada Com Fundo Cinza.jpg


Visit ZeppShop or request a budget

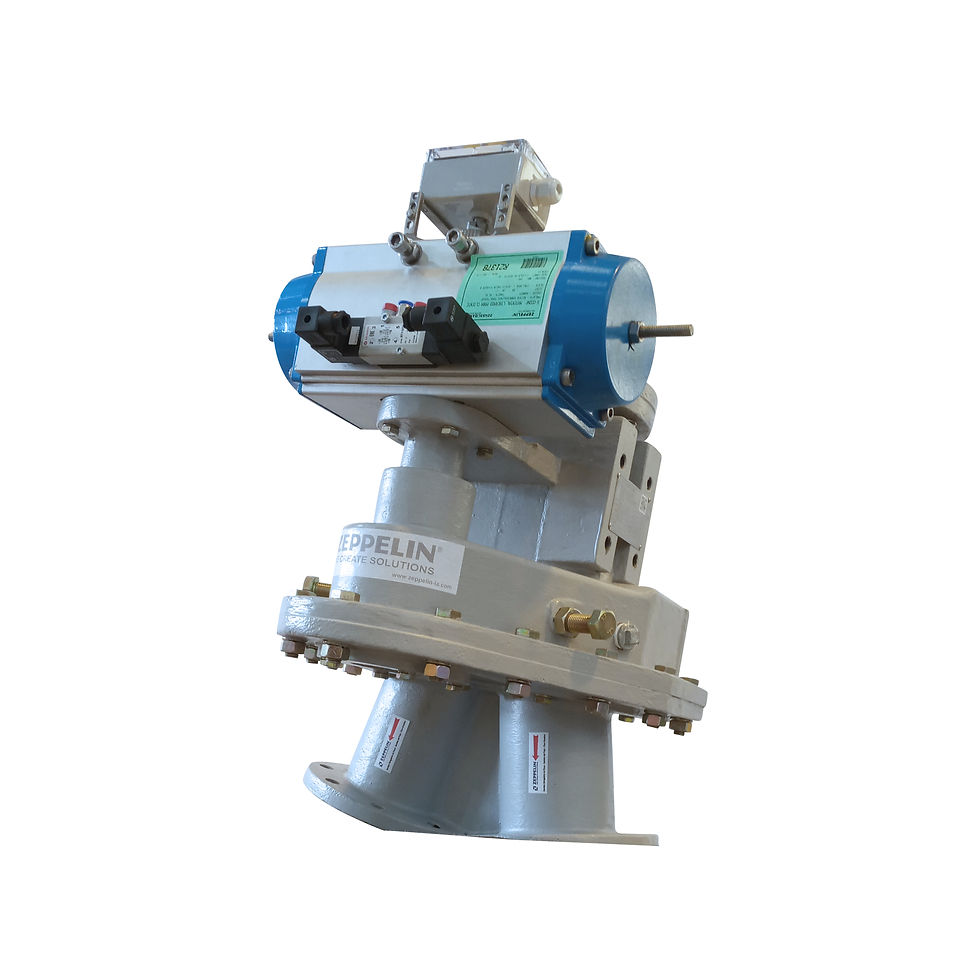

Zeppelin presents its diverter valve, which can be built in aluminium, stainless steel, or carbon steel. It allows pneumatic conveying in any direction, and its 25° construction is designed to improve product flow and facilitate installation.


Flange drilling for DIN 2501 PN10, ANSI 150 or according to customer standard.


The diverter valve is used for diverting bulk material from the main pneumatic conveying line to point of need, such as silos, cyclones, separators. It can be used in both dense and dilute phase conveying systems.

The diverter valve works with pressure between -1 and 6 bar, allowing a clean environment (free from contamination).​

Zeppelin Systems Latin America guarantees the pressure-tightness of your valves.

​Wide working range in temperatures from -20 ° C to + 100 ° C. ​

For abrasive and high temperature products, 25º angle, compact construction and 9 different types (diameters from 2 1/2 "to 14").
