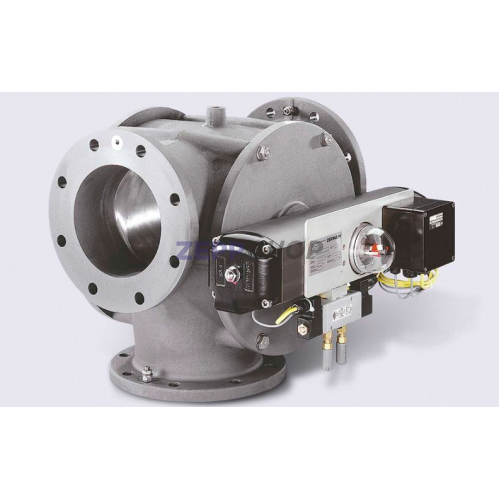

T-DIVERTER VALVE V250 PELLET AL

T-DIVERTER VALVE V250 PELLET AL

SKU: PDV.TCA.250
  • The T-Diverter valve is used for filling several silos and bins from one common pneumatic conveying line. It is mounted directly on the corresponding filling nozzle without any intermediate bend. It is normally not necessary to reinforce the silo roof.
  • Product Information

    • Smooth and gap-free transition due to patented design of the inlet and outlet;Single channel design avoids plugging;Pressure tight from -1.0 up to +6.0 bar (g) to the outside and the non activated leg;High reliability due to its maintenance-free actuator;No additional safety device necessary as there are no moving parts outside the valve;Direct mounting on silo feed nozzle without supports;No intermediate bend between valve and filling nozzle;Direction indicator of the plug easily visible;Solid temperature range from -20ºC up to +120ºC and ambient temperature range -20ºC up to +40ºC standard design;All bolts are stainless steel;Flanges easy accessible; no special connections required;Low total weight;Standard design with electrical connections in IP 65;Direct control of plug orientation by proximity switches;Deflection angle 45º in plug and housing.
R$0.00Price
